9-Inch Adjustable Angle Thermometer
Features
- Scale Size: 9" (UIAAT9)
- Adjustable Angle Thermometer
- Blue Spirit fill with Black Molded Valox case.
- Glass lens
- Swivel nut has 1 1/4" - 18" NEF thread.
- Tapered bulb chambers to insure proper fit; 1% Full Scale Accuracy

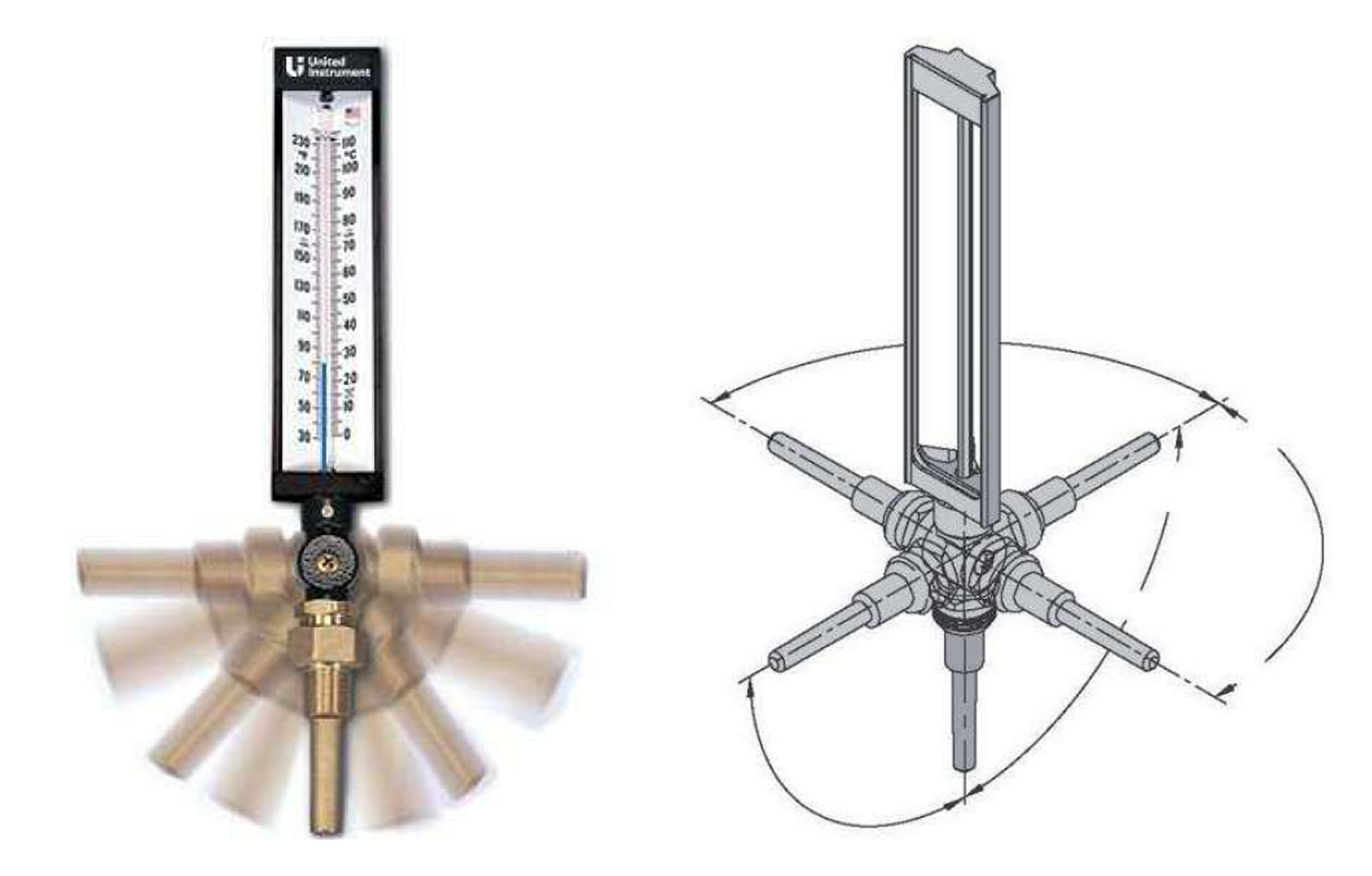

- Two screws permit case to be rotated 180° and stem to be positioned in 10° increments allowing user to select the most desirable viewing position.
Optional Extras
AL Aluminum Case
| Code | Fahrenheit | Scale 9" |
|---|---|---|
| 10 | -40 to 110°F | 2° |
| 20 | 0 to 120°F | 1° |
| 30 | 0 to 160°F | 2° |
| 40 | 20 to 180°F | 2° |
| 50 | 30 to 240°F | 2° |
| 60 | 30 to 300°F | 2° |
| 70 | 50 to 400°F | 5° |
| 80 | 50 to 550°F | 5° |
| Code | Celsius | Scale |
|---|---|---|
| UC | -15 to 50°C | 1/2° |
| UD | -15 to 70°C | 1° |
| — | — | — |
| UH | 0 to 115°C | 1° |
| UJ | 0 to 150°C | 1° |
| Stem Length | Code |
|---|---|
| 3 1/2" | 35 |
| 6" | 60 |
| Code | Dual Scale (both °F and °C) |
Scale |
|---|---|---|
| GA | -40 to 110°F / -40 to 43°C | 2°/1° |
| GC | 0 to 120°F / -17 to 49°C | 1°/1/2° |
| GD | 0 to 160°F / -17 to 71°C | 2°/1° |
| GF | 20 to 180°F / -6 to 82°C | 2°/1° |
| GH | 30 to 240°F / 0 to 114°C | 2°/1° |
| GJ | 30 to 300°F / -1 to 149°C | 2°/1° |
| GK | 50 to 400°F / 10 to 240°C | 5°/2° |
| GL | 50 to 550°F / 10 to 288°C | 5°/2° |
