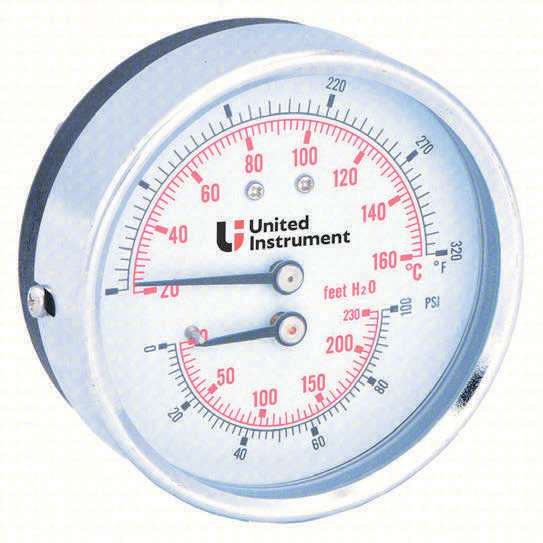

Tridicator
Dial: Aluminum, painted white
Accuracy:
Pressure: ±3-2-3%
Temperature: ±3% of full scale
Scale: Dual (°F & °C)
Lens: Glass
Case: Steel, painted black
Ring: Steel, chrome plated
Stem & Socket: Brass
Tube: Phosphor bronze
Movement: Brass and phosphor bronze
Sensing Element:
Temperature: Bi-metallic coil
Pressure: Bourdon tube
Pointer: Aluminum, anodized black
Pressure Limit: 75% of full scale range
Ambient Temperature: 23°F to 122°F (-5°C to 50°C)
Process Temperature: 75% of full scale range
| Dial | Range | Connection | Stem Length | Code |
|---|---|---|---|---|
| 2.5" (63mm) | 0 to 75 psi/kPa 70°F to 250°F (20°C to 120°C) |
1/4" NPT Extension Back |
2" (50mm) | TRI-2-1.5 |
| 2.5" (63mm) | 30°F to 250°F (0°C to 120°C) |
1/4" NPT Back |
2" (50mm) | TRI-2 |
| 3" (75mm) | 30°F to 250°F (0°C to 120°C) |
1/2" NPT Back |
2.5" (63mm) | TRI-24 |

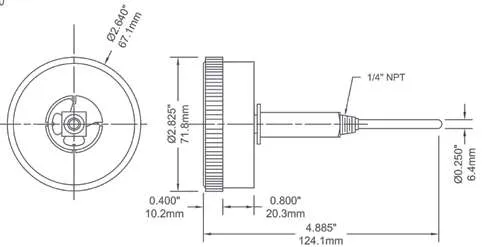

2.5" Extension Back Connection

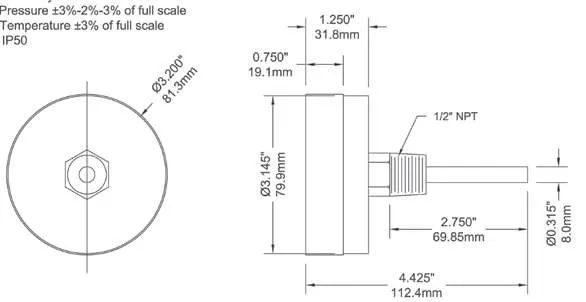

2.5" Back Connection
2.5" Extension Back Connection
