Test Gauge Series
Precision pressure measurement for testing applications.

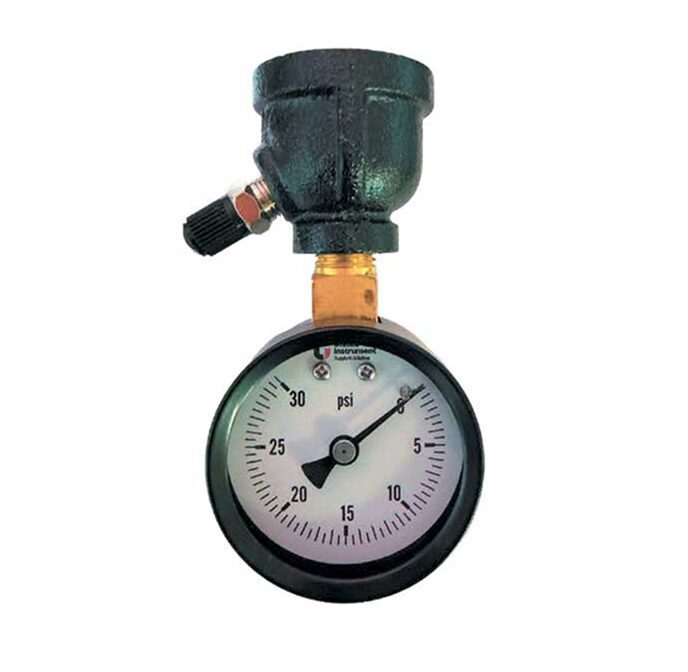

TGGAS
Dial Size: 2.5"
Lens: Snap-in Plastic
Case: Steel (black)
Tube & Socket: Copper Alloy
Accuracy: 3/2/3% per ASME B40.1
Grade: B
FNPT connections: 3/4" FNPT
Scale: White with black graduations and numerals
Pressure Range: Available in any range
Ordering Note: add pressure range to the end for a complete product number. Example; TGGAS-30 for a 30PSI TGGAS gauge.
PTG-3
Dial Size: 2.5"
Lens: Snap-in Plastic
Case: Steel (black)
Tube & Socket: Copper Alloy
Accuracy: 3/2/3% per ASME B40.1
Grade: B
FNPT connections: 3/4" Swivel
Scale: White with black graduations and numerals
Optional Extra: Red Max Pointer. Add "MAX" to end of the PN. Example; PTG-3-300-MAX
Pressure Range: Available in any range
| Order Instructions — Example Product #: TGGAS-3 300 | |
|---|---|
| Catalog # | Pressure Range |
| PTG-3 | 300 |
GTGB
- Used to measure gas or fluid system pressure during testing and commissioning
- Range: 15 100 PSI
- Connections: 1/2", 3/4", and 1"
| Order Instructions — Example Product #: GTGB 34 30 | ||
|---|---|---|
| Catalog # | Connection Size | Pressure Range |
| GTGB | 3/4" | 30 |
